                  High Flow Water Filter Cartridges
Introduction
The High Flow Pleated Polypropylene Filter Cartridge is suited for applications such as cooling water, pre-RO, and other water filtration.It is a large diameter, single open-ended, pleated cartridge with an inside to outside flow pattern. The filter's unique crescent-shaped pleat geometry, combined with its large 152 mm / 6 inch diameter, allows you to use significantly fewer filters and smaller housings for high flow-rate applications.

Specifications:

High flow rate filter cartridge
Length20'', 40'' and 60''40'' 20'', 40'' and 60''
Diameter6''(152mm)6''(152mm)/6.5''(165mm)
Micron rate1-100 micron
Filter MaterialPleated glass fiber, Pleated depth Polypropylene (PP), PP melt blown
CoreCoreless/with PP core
End CapsGlass fiber reinforced Polypropylene (PP)
Support/DrainagePolypropylene (PP), Glass fiber reinforced PP
Gasket/O-ring/seal
material
EPDM/NBR/Viton
Max. operating
differential pressure
PP: 3.44bar@82°C,50psi@180°F Glass
Fiber: 3.44bar@121°C, 50psi@180°F
Suggestion water flow20" 660LPM, 40" 1300LPM, 60" 1900LPM

Pictures

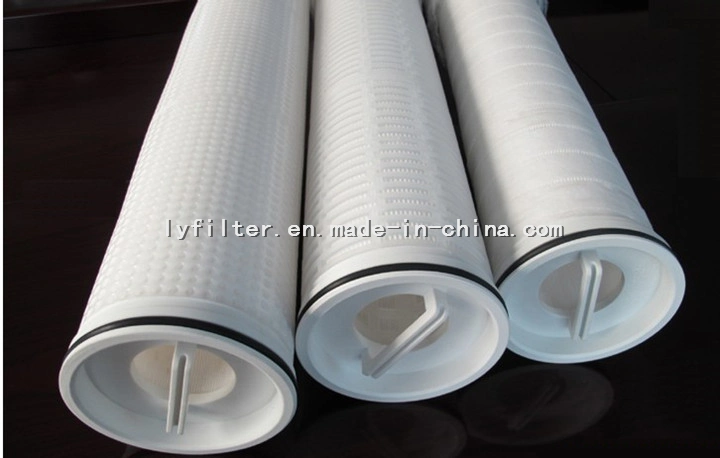

5 Micron Hydraulic Filter Cartridge High Flow Filter Cartridge



Replacement Pall filter

5 Micron Hydraulic Filter Cartridge High Flow Filter Cartridge

Replacement Parker/Rizon filter

5 Micron Hydraulic Filter Cartridge High Flow Filter Cartridge
Replacement 3M filter

5 Micron Hydraulic Filter Cartridge High Flow Filter Cartridge
5 Micron Hydraulic Filter Cartridge High Flow Filter Cartridge
Filter cartridges used in stainless steel filter housing
5 Micron Hydraulic Filter Cartridge High Flow Filter Cartridge

Product Features
•Fewer cartridges and less time to assemble
•Common-use size: 40'',60'' length cartridge
•Filtration systems are 50% smaller than typical size system
•In to out flow direction keeps all of the contamination catched
•Handle design makes change fast, easy and safe
•Large surface area pleated design provides low pressure drop and long service life
•Polypropylene cartridges comply with FDA grade
•Inside-to-outside flow pattern that traps contaminant inside the element thus preventing polluting the
treated water during the cartridge change-out
•Flow rate up to 1900LPM per cartridge
•High quality, long service life

Main Application

IndustrialMunicipal water, RO Prefiltration, Process Water, Condensate water, cooling water,
waste water treatment etc.
ChemicalQuench water, aqueous salt solutions, final products
PetrochemicalsWater flooding, produced water, enhanced oil recovery, completion fluids, amine sweetening, final products
ElectronicsRO pre-filtration, process water, deionized water pre-filtration
Food and BeverageProcess and blending water, bottled water
PharmaceuticalFiltration of pharmaceuticals, biologicals, serum products, compressed air and gas.
Power PlantSupplementary water,condensation water, coolant
OthersFiltration of plating solution, process fluids, photoresist and magnetic media

Packaging & Shipping
Packaging:
1.Products are packed by polybag then in carton, 1pcs/ctn. It can reduce abrasion when transport.
2.Products are packed by high quality carton, suitable for long distance ocean freight transportation as well as changing climate and with good resistance to moisture and shocks.
Delivery time:
1.If this kind of products is in stock, the product will be sent for you 1-7 days after payment.
2.If this kind of products is not in stock, the products will take about 7-25 days to produce.
Shipping:
Maritime; Railway; Air (DHL/UPS/TNT/FEDEX)
