General Description:

--------------------------------------


MHFB Series Filter Cartridge is a new product developed by Darlly Filtration Equipment Co.,Ltd in Hangzhou China.                                                 This cartridge is designed to be used in different filter housings which contains 1 to 37 filter cartridges.                                                                           It can be used for a variety of hardwares and for different flow rate request.
The large diameter with big filter area insures to reduce the number of filter cartridges and the dimension of housing required.



Applications:-- Prefiltration of RO, Pretreatment of sea water desalination

-- Condensate water filtration, hot water recovery in power generation
-- API, solvents, and water filtration in BioPharm market
-- The filtration of bottled water, high Fructose, edible oil, soft drinks,and milk
-- Paints and coatings, Petrochemical, Refineries
-- Microelectronics, film, fiber and resin



Features:

_____________________________________________________________________



-- High dirt holding capacity, longer service life
-- Less cartridge change out to save the labor cost

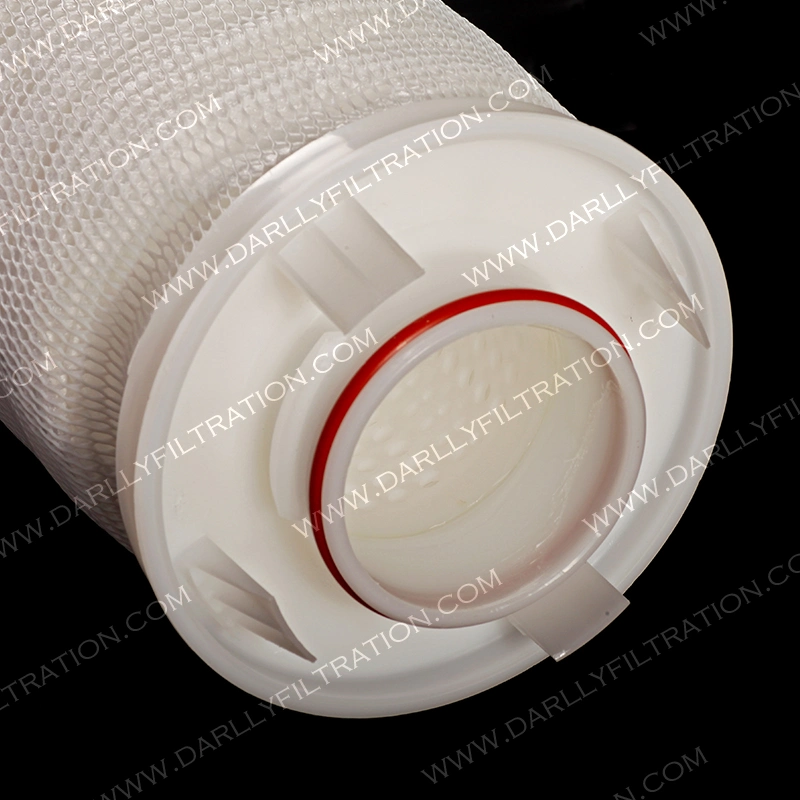

-- O-ring design cause no bypass to ensure the filtration efficiency
-- Easy handing result in less manpower
-- Wide chemical compatability for different applications



Part numbers/Ordering information


Darlly Multi-high flowment filter cartridge P/N :

DLMHF*-=-#-+(e.g.,DLMHF-5-PP-F-A)


Code *Removal RatingCode=Media Type
11um PPPolypropylene
33umGFPleated glass fiber
55um
1010um
2020um
5050um
7070um



Code # Seal Material
EEPDM
FE-FKM
Code+End Cap Type
ACode A
BCode B



Outside Diameter:6.5 inch(165mm)
Length:  39 inch(1000mm)
Filter media:Polypropylene (PP),Glass Fiber
Support/Drainage and  End caps  :Polypropylene (PP)
End Cap Material : Glass Fiber reinforced Polypropylene (PP)
Seal Material :EPDM, FEP encapculated Viton
Removal Rating:  1, 3, 5, 10, 20, 50, 70µm
Maximum Operating Temperature: 80°C
Maximum Differential Pressure:3.4Bar,80°C
Recommended Change out Differential Pressure:2.4Bar,20°C.
Suggested maximum flow rate: 1300LPM
